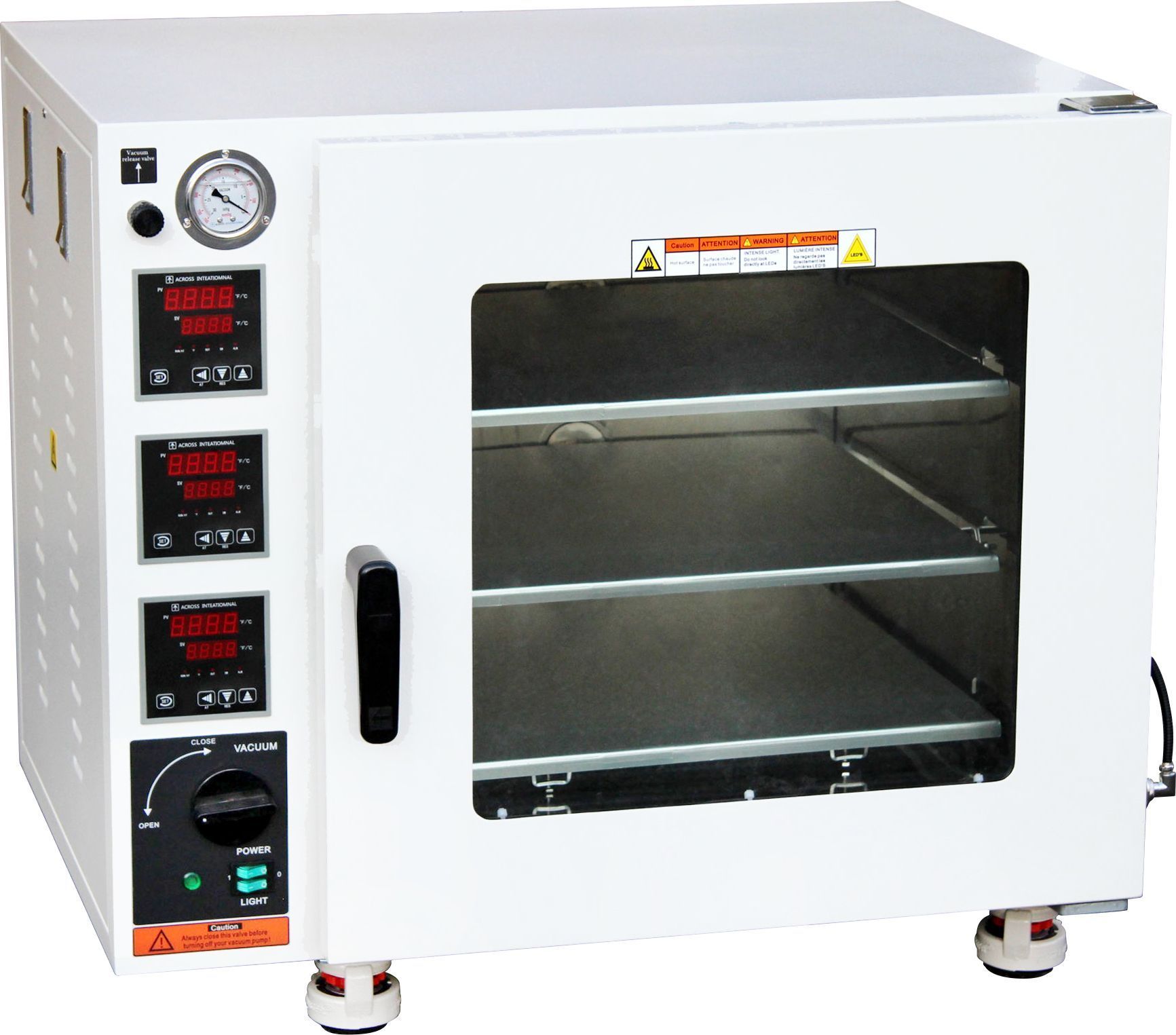

ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights

ECO 150C 3.2 Cu Ft Vacuum Oven 3 Heated Shelves & LED Lights

With Ai internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

Features

  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • Three alumimum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
  • Dual layer observation window with 5/8" tempered safety glass.
  • 3rd gen low proportional gain temperature controllers keep your oven temperature accurate.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in swivel casters with leveling feet.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes

Manufactured in accordance with

  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

As low as
IN STOCK Model: AT32e Delivery Time: 1-3 Weeks

Vacuum oven specifications

 Electric  110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
  or
 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
 Heater  500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient
 and uniform heating.
 Chamber  Size: 18 x 18 x 18"
 Material: Stainless steel
 Capacity: 3.2 cubic feet
 Temperature control  Controller: 3rd gen low proportional gain, microcomputer PID controlled
 Range: ambient to 150°C (302°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 5% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Warm-up time to 100°F: 35 minutes
 Vacuum  Ultimate vacuum level: better than 500 microns/millitorrs
 (may vary based on your altitude)
 Mechanical gauge range: 0 to 30 inch mercury
 Vacuum port: KF25 flange x 1
 Vent port: 1/4" ball valve
 Vacuum pump: Sold separately
 Weight  Unit: 240 Lbs, shipping: 380 Lbs
 Dimensions (WxDxH)  Unit: 30.5 x 24 x 29"
 Shipping: 36 x 33 x 35"
 Shelves  Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each
 Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH)
 Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
 Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2
 Distance between shelves (without stackable shelves): 4.75 inches
 Distance between shelves (with 3 stackable shelves): 2.25 inches
 Max. load capacity per shelf: 20 Lbs
 Door gasket material  Silicone (standard), Viton (optional)
 Observation window  1/2" tempered safety glass
 Safety  Built-in circuit breaker
 Overheat shutoff protection
 In-door lights  White LED
 Warranty  1 year
 Compliance  CE
  • Weight 200 Kg
  • Dimensions 36 Inch x 33 Inch x 35 Inch
