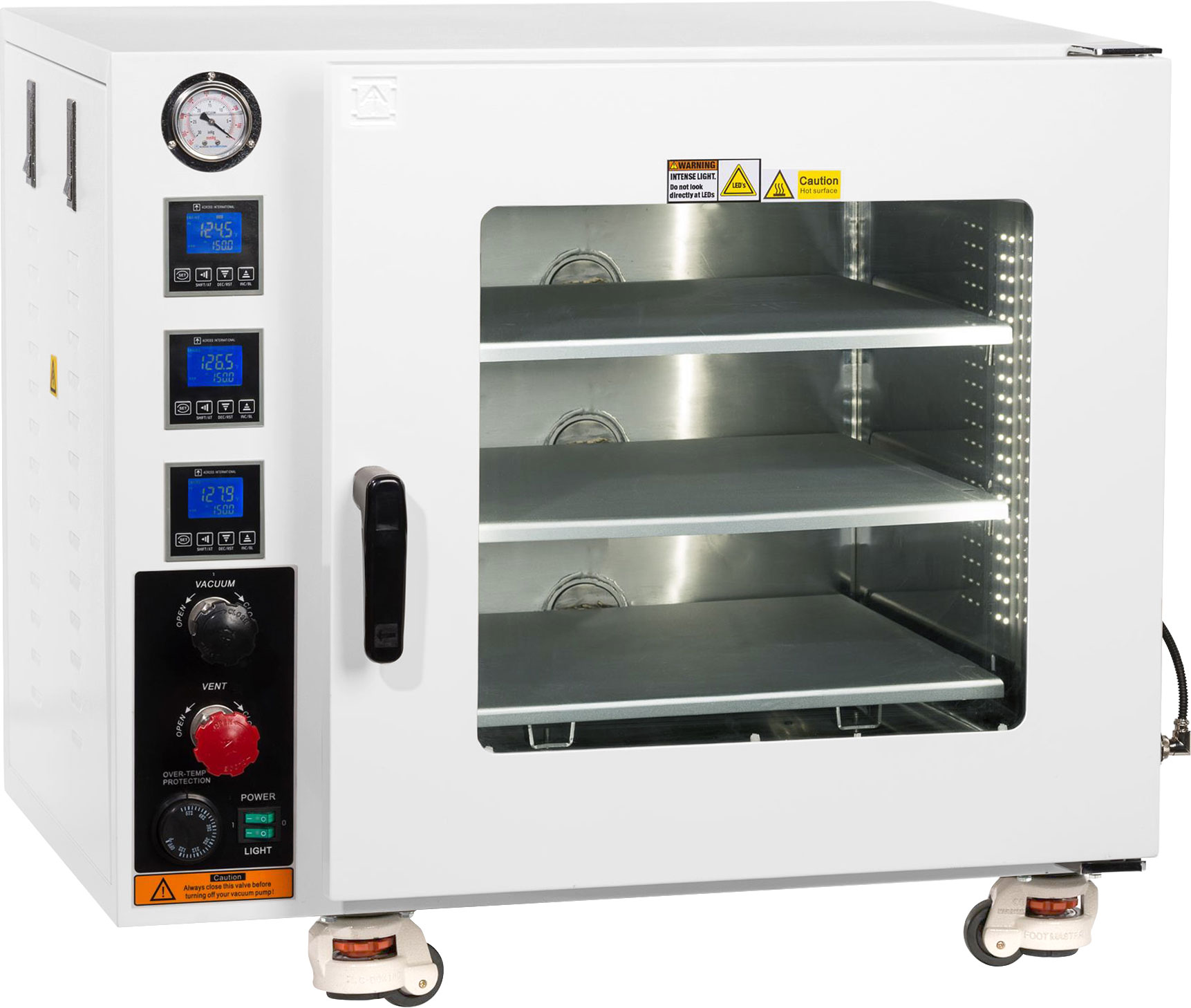

3.2 CF Vacuum Oven 250C UL Certified 316L SST Optional with 3 Heating Shelves

3.2 CF Vacuum Oven 250C UL Certified 316L SST Optional with 3 Heating Shelves

110V only comes with 316L Chamber ($5,990.00)
220V comes with non-316L Chamber ($5,480.00) or 316L Chamber ($5,990.00)

Introducing the new UL certified 3.2. cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and two year warranty. With our new internal shelf heating technology, each shelf in these laboratory ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

Features

  • UL certified.
  • New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • Three alumimum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
  • Dual layer observation window with 5/8" tempered safety glass.
  • 4th gen low proportional gain temperature controllers keep your oven temperature accurate
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in swivel casters with leveling feet.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

As low as
IN STOCK Model: AT32-UL Delivery Time: 1-3 Weeks

Vacuum oven specifications

 Electric  110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
 or
 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts
 Heater  500 watts x 3, built into 3 aluminum shelves, for the fastest, most energy efficient
 and uniform heating.
 Chamber  Size: 18 x 18 x 18"
 Material: Stainless steel
 Capacity: 3.2 cubic feet
 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
 Range: ambient to 250°C (or 480°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 5% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Warm-up time to 100°F: 35 minutes
 Warm-up time to 480°F: 60 minutes
 Vacuum  Ultimate vacuum level: better than 500 microns/millitorrs
 (may vary based on your altitude)
 Mechanical gauge range: 0 to 30 inch mercury
 Vacuum port: KF25 flange x 1
 Vent port: KF25 flange x 1
 Vacuum pump: Sold separately
 Weight  Unit: 260 Lbs, shipping: 400 Lbs
 Dimensions (WxDxH)  Unit: 30.5 x 24 x 29"
 Shipping: 36 x 33 x 35"
 Shelves  Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25" (WxD) each
 Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25" (WxDxH)
 Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2
 Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2
 Distance between shelves (without stackable shelves): 4.75 inches
 Distance between shelves (with 3 stackable shelves): 2.25 inches
 Max. load capacity per shelf: 20 Lbs
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Safety  Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial
 In-door lights  White LED
 Warranty  2 years
 Compliance  UL (E482564), CE
  • Weight 202.5 Kg
  • Dimensions 36 Inch x 34 Inch x 36 Inch
