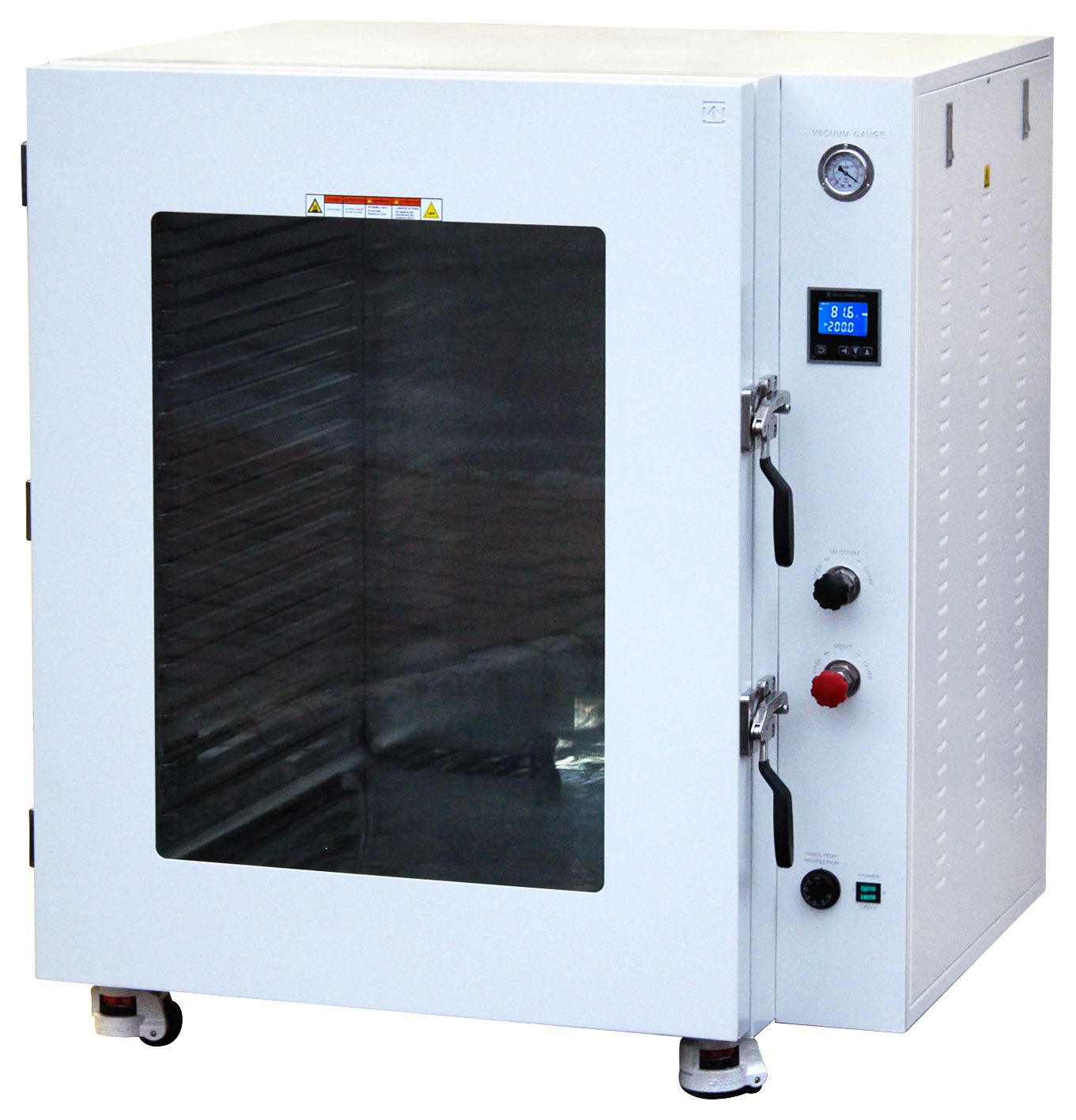

316L SST 250C 26 Shelf Max 16 CF 5 Sided Heating Vacuum Oven 220V ETL

316L SST 250C 26 Shelf Max 16 CF 5 Sided Heating Vacuum Oven 220V ETL

SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Oven comes standard with 13 shelves. This unit only comes in 220V 50/60Hz.

Introducing the new Ai 250C max. 26-shelf capacity, 5-sided wall-heating, 16 cu ft vacuum oven, one of the biggest 250C vacuum ovens on the market! Comes standard with secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and 2-year warranty.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

Features

  • ETL tested to UL and CSA standards.
  • Dual door handles with tension-adjustable latches for exceptional vacuum sealing.
  • New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • 4th gen low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosures outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out-of-range temperature.
  • Built-in swivel casters with leveling feet.
  • For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

As low as
IN STOCK Model: AT160x-UL Delivery Time: 1-3 Weeks

Vacuum oven specifications

 Electrical requirements  220V +/-10% 50/60Hz 1-PH 27.3A, 6,000 watts
 Chamber  Size: 25.6 x 30 x 35.5"
 Material: Stainless steel
 Capacity: 16 cubic feet
 Heater  Layout: 5-sided heating
 Total wattage: 6,000W
 Distribution: left 860W x 2, right 860W x 2, top 400W, bottom 840W, back 330W x 4
 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
 Range: ambient to 250°C (480°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 7% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Heating speed  Ambient to 100°C: 40 mins
 Ambient to 150°C: 1 hour
 Ambient to 200°C: 2 hours
 Ambient to 250°C: 2.5 hours
 Vacuum  Ultimate vacuum level: better than 500 microns/millitorrs
 (may vary based on your altitude)
 Mechanical gauge range: 0 to 30 inch mercury
 Vacuum port: KF25 flange x 1
 Vent port: KF25 flange x 1
 Vacuum pump: Sold separately
 Weight  Unit: 800 Lbs, shipping: 1200 Lbs
 Dimensions (WxDxH)  Unit: 44 x 38 x 51.5"
 Shipping: 50 x 45 x 60"
 Shelves  Shelf size: 25 x 30" (WxDxH)
 Material: aluminum
 Style: pan-shape
 Capacity: 26 shelves max.
 Comes standard with oven purchase: 13 shelves
 Total area with 26 shelves: 89 sq ft or 12,857 sq inch
 Distance between the most adjacent shelves: 1.25 inches
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Safety  Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial
 In-door lights  White LED (pre-installed)
 Compliance  ETL tested to UL and CSA standards
 Warranty  2 years
  • Weight 660 Kg
  • Dimensions 50 Inch x 47 Inch x 59 Inch
