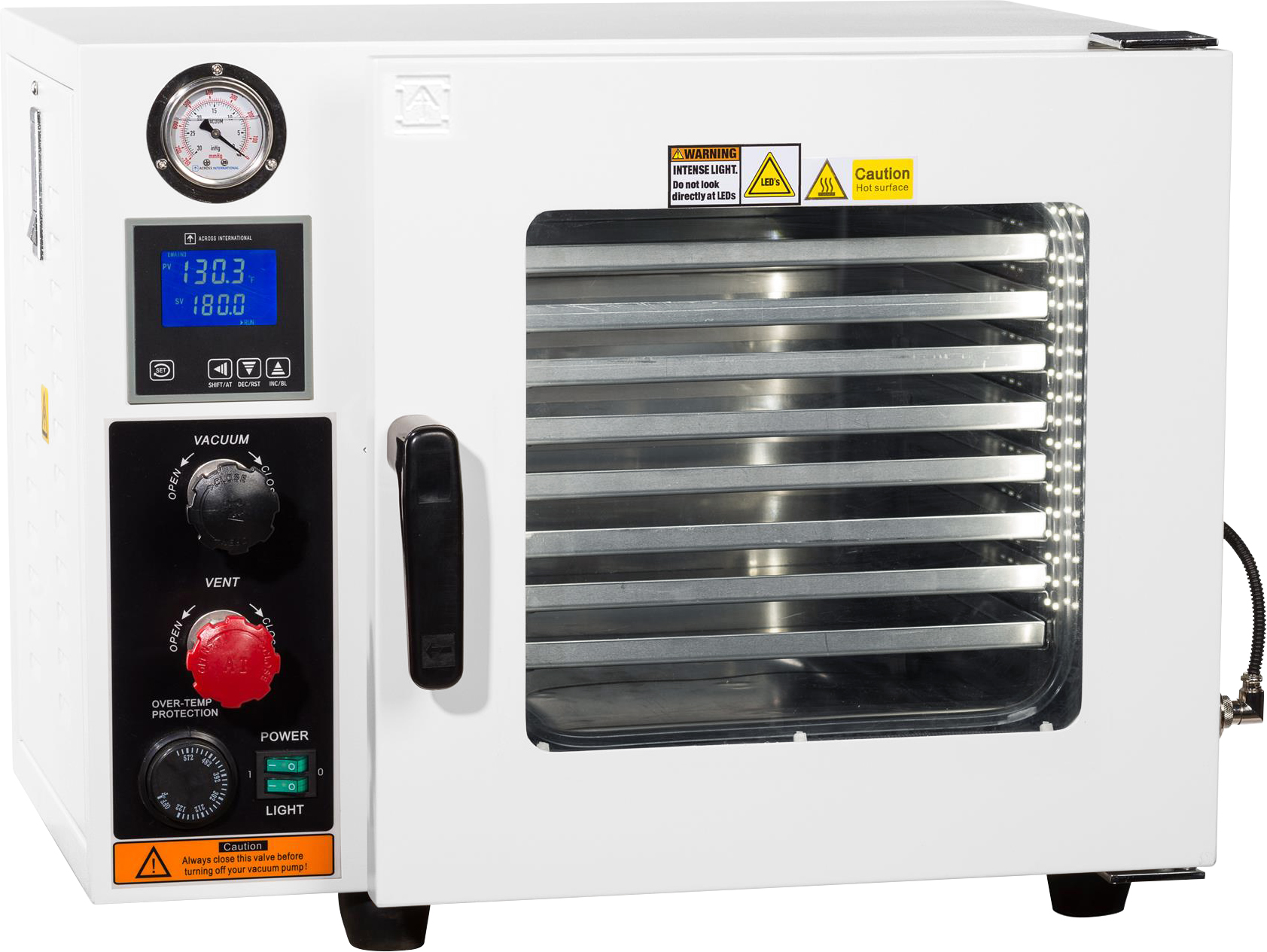

316L SST 250C UL Certified 0.9 CF Vacuum Oven 5 Sided Heat - 110V 60Hz

316L SST 250C UL Certified 0.9 CF Vacuum Oven 5 Sided Heat - 110V 60Hz

FOUR ALUMINUM SHELVES INCLUDED WITH OVEN PURCHASE. SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

Introducing the new Ai UL certified 0.9 cubic foot vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard are the secondary over-temp protection dial, all stainless steel tubing/compression fittings, stainless steel vacuum/vent valve, oil-filled vacuum gauge, 5 sided pad heating technology and two year warranty. The thermal-conductive aluminum pan shelves provide excellent temperature uniformity inside the chamber, while our 4th gen LCD low proportional gain temperature controllers keep your oven temperature accurate.

AT09 series digital desktop vacuum ovens feature a 0.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.

Attention: Before initial use, run oven at 200C/400F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

Features

  • UL certified.
  • All stainless steel internal tubing and compression fittings provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • New 5 sided pad heating technology and aluminum shelves provide excellent temperature uniformity and faster heating rates (25% faster in our lab test).
  • Adjustable gas back fill capability with needle valve and vent port.
  • 4th gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 1/2" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE
As low as
IN STOCK Model: AT09-316L-UL Delivery Time: 1-3 Weeks

Vacuum oven specifications

 Electrical requirements  110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts
 Chamber  Size: 12 x 12 x 11"
 Material: Stainless steel
 Capacity: 0.9 cubic foot
 Heater  5-sided heating (left 350W, right 350W, top 220W, bottom 480W, back 100W)
 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
 Range: ambient to 250°C (or 480°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 5% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Warm-up time to 100°F: 40 minutes
 Vacuum  Ultimate vacuum level: better than 500 microns/millitorrs
 Mechanical gauge range: 0 to 30 inch mercury
 Vacuum port: KF25 flange
 Vent port: KF25 flange
 Vacuum pump: Sold separately
 Weight  Unit: 90 Lbs, shipping: 165 Lbs
 Dimensions (WxDxH)  Unit: 23.4 x 17.25 x 19"
 With handle and vacuum port: 23.4 x 20 x 19"
 Shipping: 29 x 29 x 29"
 Shelves  Included with oven purchase: 4 aluminum slide-in shelves
 Capacity: 8 shelves max.
 Style: pan-shape
 Size: 11.5 x 11.25"
 Maximum area: 129.4 x 8 = 7 sq ft or 1035 inch2
 Distance between shelves: one inch
 Weight capacity  Inner chamber load capacity: Recommended <30Kg
 Shelf load capacity: Recommended <10Kg
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Safety  Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial
 In-door lights  White LED
 Warranty  2 years
 Compliance  UL(E482564), CE
  • Weight 82.5 Kg
  • Dimensions 28 Inch x 24 Inch x 26 Inch
