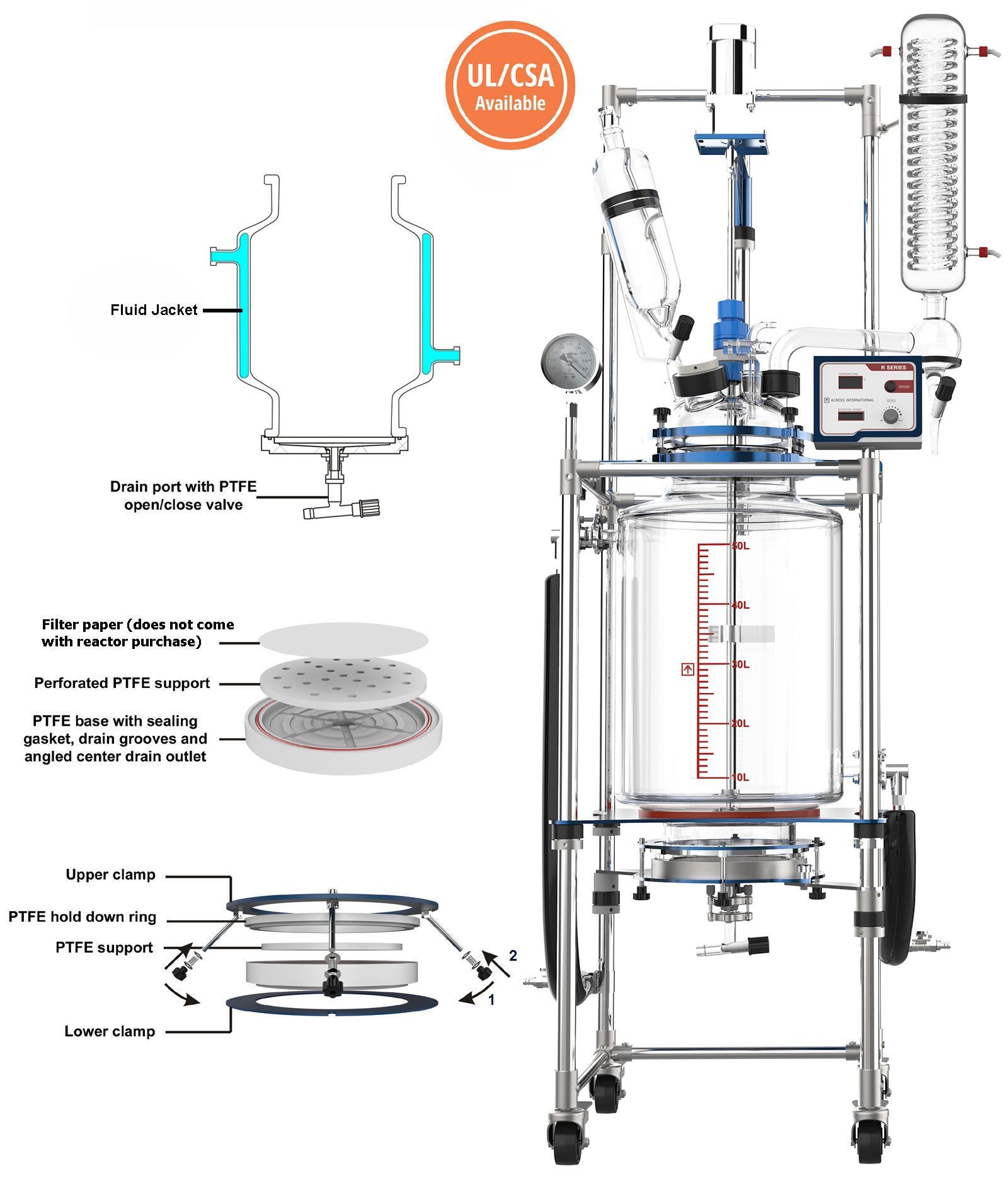

The Ai jacketed filter glass reactors are designed for synthetic reactions of different types of materials in a controlled temperature and vacuum environment. The 2R50f configuration is the dual-jacketed 50L filter system, which supports single or multi-step reactions and filtrations in the same vessel while reducing material transfers and material losses.

Each Ai reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows material to be added to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials at a controlled rate of speed.

Features

• ETL tested to UL and CSA standards, with CE optional.
• Dual-jacketed configuration with vacuum and thermo fluid jackets.
• Filter reactor design supports single or multi-step reactions and filtrations in the same vessel while reducing material transfers and losses.
• Modular filter assembly can be detached for cleaning and filter paper replacement.
• Center downward drain port with angled drain grooves supports easier material drainage.
• All PTFE filter components support clean, long-lifespan operation.
• Solvent-resistant PTFE sealing components support long-term durability and operation.
• All glassware is hand-made from food grade high borosilicate glass that is heat, cold, and corrosion resistant.
• Adjustable stirring rate provides high torque or high speed.
• Patented PTFE stirring rod bearing supports reliable and quiet operation.
• Optional multi-layer stirring blades are available for optimized reaction results.
• The operating temperature range spans from -110F to 400F.
• Heavy duty stainless steel supporting framework with lockable casters provides mobility and stability.
