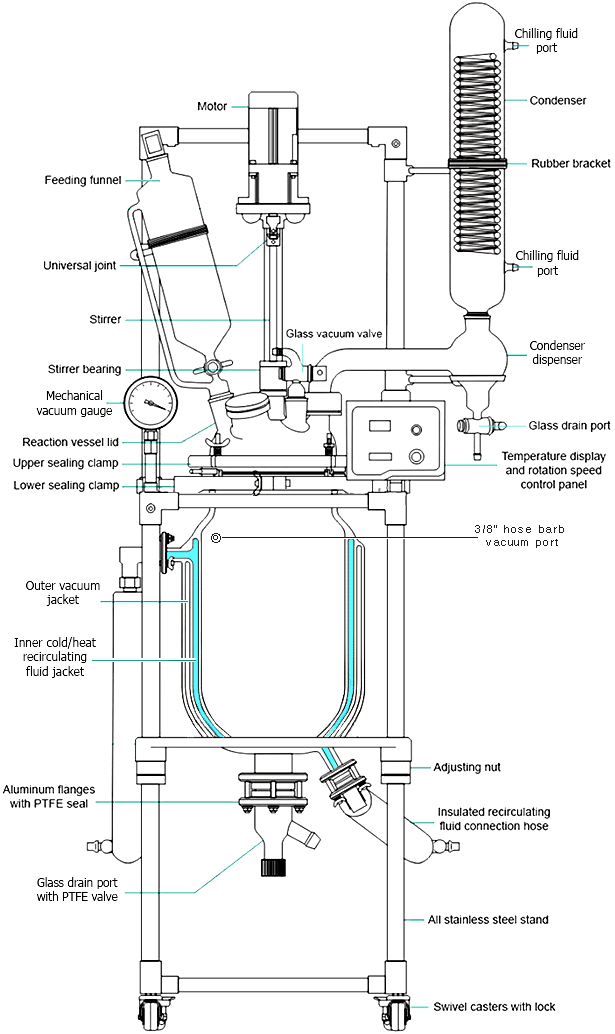

Ai R-series single and dual jacketed glass reactors are designed for synthetic reactions in a controlled temperature and vacuum environment. The 2R50 configuration is the dual-jacketed 50L system, with adjustable stirring speeds, a constant-pressure feeding funnel for controlled material addition, and a built-in condenser for material recovery during operation.

Features

• The dual-jacketed design allows vacuum to be drawn from the outer jacket to better protect recirculating fluid temperature and reduce frosting on the outside of the vessel.
• Includes a thermo insulation jacket with viewing window and adjustable drawstrings.
• Solvent-resistant PTFE sealing components support durable long-term operation.
• All glassware is made from high borosilicate glass that is resistant to heat, cold, and corrosion.
• Adjustable stirring speed supports both higher torque and higher speed operation.
• Patented PTFE stirring rod bearing supports reliable and quiet operation.
• Optional multi-layer stirring blades are available for optimized reaction results.
• The operating temperature range spans from -110F to 400F.
• A large condenser cooling surface helps improve condensation performance.
• The stainless steel support frame includes lockable casters for stability and mobility.
• ETL tested to UL and CSA standards is available as an option, with CE available as an option.
• One-year warranty with lifetime US-based parts, service, and support.
